"Graham Jost model with Schmidt coupling" by EDV - 24/06/2024
143.361 bytes - 572 parts
Description

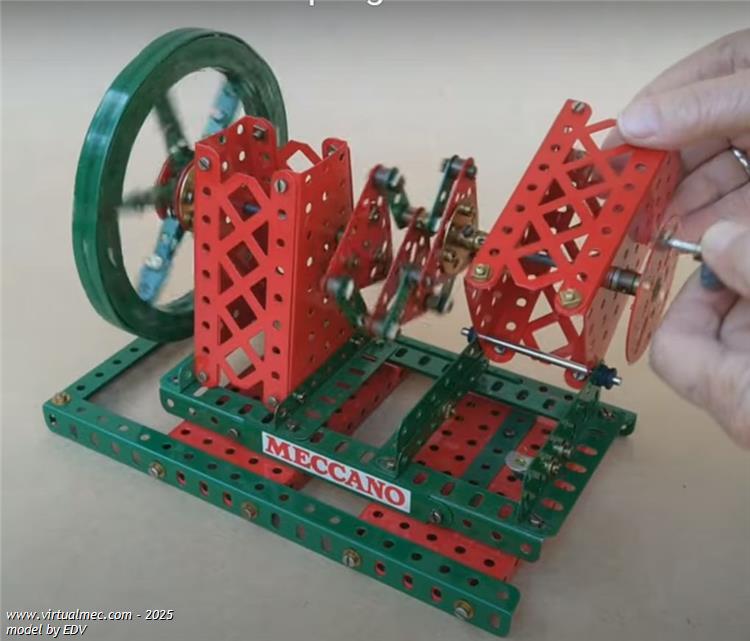

Graham assembled this model recently. It illustrates the use of this coupling, present on one of the Standard Mechanisms manuals. I also uses an inteligent assembly of a Fly Wheel designed by Bert Halliday.
On my drawing I introduced a variation for spokes due to geometric limitations that made perfectly curved double angle strips demand spokes of intermediate lenght, not available. My drawing is static. It is possible to add movement to the drawing but I do not possess the necessary expertese to do it.
|
